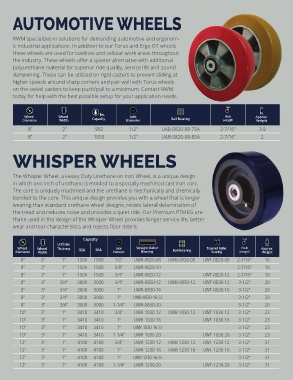

Page 5 - RWM Catalog Interior FINAL 03202017 R4

AUTOMOTIVE WHEELS

RWM specializes in solutions for demanding automotive and ergonom-
ic industrial applications. In addition to our Torus and Ergo GT wheels
these wheels are used for towlines and cellular work areas throughout
the industry. These wheels offer a quieter alternative with additional
polyurethane material for superior ride quality, service life and sound
dampening. These can be utilized on rigid casters to prevent sliding at
higher speeds around sharp corners and pair well with Torus wheels
on the swivel casters to keep push/pull to a minimum. Contact RWM
today for help with the best possible setup for your application needs.

Wheel Wheel lbs. Axle Ball Bearing Hub Approx
Diameter Width Capacity Diameter Length Weight
UAB-0820-08-75A
8” 2” 950 1/2” UAB-0820-08-85A 2-7/16” 3.9
8” 2” 1050 1/2” 2-7/16” 2

WHISPER WHEELS

The Whisper Wheel, a Heavy Duty Urethane on Iron Wheel, is a unique design
in which one inch of urethane is molded to a specially machined cast iron core.
The core is uniquely machined and the urethane is mechanically and chemically
bonded to the core. This unique design provides you with a wheel that is longer
wearing than standard urethane wheel designs, resists lateral delamination of
the tread and reduces noise and provides a quiet ride. Our Premium PTMEG ure-
thane used in the design of the Whisper Wheel provides longer service life, better
wear and tear characteristics and rejects floor debris.

Capacity

Wheel Wheel Urethane 92A 90A Axle Straight Roller Ball Bearing Tapered Roller Hub Approx
Diameter Width Thickness Diameter Bearing Bearing Length Weight
1500 1500 UWB-0820-08
8" 2" 1" 1500 1500 1/2" UWR-0820-08 UWB-0830-12 UWT-0820-08 2-7/16" 10
8” 2” 1" 1500 1500 5/8" UWR-0820-10 2-7/16" 10
8” 2” 1" 3000 3000 3/4" UWR-0820-12 UWB-1030-12 UWT-0820-12 2-7/16" 10
8” 3” 3/4" 3000 3000 3/4" UWR-0830-12 UWT-0830-12 3-1/2" 20
8” 3” 3/4" 3000 3000 1" UWR-0830-16 UWB-1230-12 UWT-0830-16 3-1/2" 20
8” 3” 3/4" 3000 3000 1" UWR-0830-16-SI UWB-1230-16 3-1/2" 20
8” 3” 3/4" 3410 3410 1-1/4" UWR-0830-20 UWT-1030-12 3-1/2" 20
10" 3" 1" 3410 3410 3/4" UWR-1030-12 UWT-1030-16 3-1/2" 23
10” 3” 1" 3410 3410 1" UWR-1030-16 3-1/2" 23
10” 3” 1" 3410 3410 1" UWR-1030-16-SI UWT-1030-20 3-1/2" 23
10” 3” 1" 4100 4100 1-1/4" UWR-1030-20 UWT-1230-12 3-1/2" 23
12" 3" 1" 4100 4100 3/4" UWR-1230-12 UWT-1230-16 3-1/2" 31
12” 3” 1" 4100 4100 1" UWR-1230-16 3-1/2" 31
12” 3” 1" 4100 4100 1" UWR-1230-16-SI UWT-1230-20 3-1/2" 31
12” 3” 1" 1-1/4" UWR-1230-20 3-1/2" 31
