85 Series Casters
Heavy-Duty Kingpinless Casters
RWM’s 85 Series caster features the patented Kingpinless™ caster design. This is the design that RWM patented, and that has proven itself to be the best solution for demanding applications. This is the caster design that all others are now copying because it is simply unmatched in extending service life, reducing all possible causes for caster failure. The 85 Series offers a capacity up to 10,000 pounds and is available with wheels up to 5” wide for higher capacity ratings. This caster is built to take the punishment experienced in high shock and impact loads.
Features
| Raceway Design | Patented Kingpinless™ single ball bearing precision machined raceway hardened to 53 Rockwell C minimum. Swivel section features 4-1/4” diameter raceway with 5/8” ball bearings. A notched yoke is available upon request. |
| Capacity | Up to 10000 lbs. |
| Leg Thickness | 3/8,” 3” wide for 3” wheels, 4” wide for 4” wheels, 5” wide for 5” wheels |
| Axle | 3/4” bolt and nut for 3” wide, 1” or 1-1/4” bolt and nut for 4” wide, 1-1/4” bolt and nut for 5” wide |
| Finish | Laguna blue powder coat |
| Wheels | 3” wide wheels are available with either a 1” roller bearing that rotates on a ¾” x 1” x 3-9/16” hardened and ground spanner bushing or ¾” tapered bearings that rotate on a ¾” axle. 4” and 5” wheels are available with either a 1-1/4” I.D. roller bearing which rotates on a hardened and ground spanner bushing or 1-1/4” tapered bearings which rotate on the axle. All wheels are equipped with lubricated fitting. |

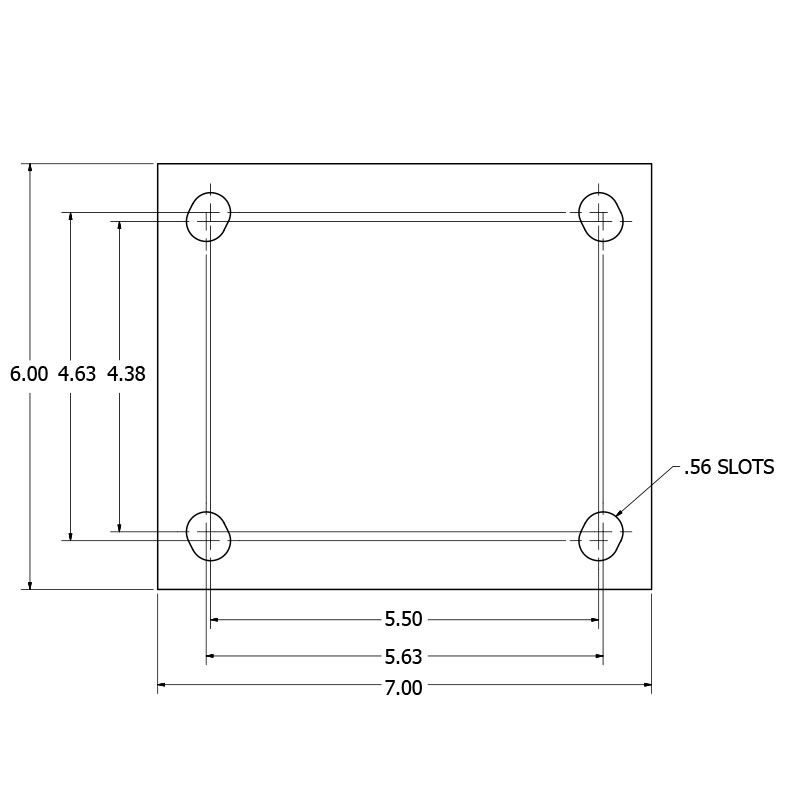

| Mounting Plate Size | 6” x 7” x 1/2” |
| Bolt Hole Spacing | 4-5/8” x 5-1/2” slotted to 4-3/8” x 5-5/8” |
| Mounting Bolt Diameter | 1/2” |
Applications
| Tow Lines | Boat & ship molding and building |
| Abusive Conditions | Storage tanks & gantries |
| Automotive | Shock load applications |
| Aerospace | Production line dollies |
| Metal fabricating | Heavy machinery |
| Military equipment | Mobile homes |
| Tractor pulled trailers | Extreme duty platform trucks |
| Air cargo & ground support equipment | Heavy-duty processing equipment and countless other heavy-duty applications |
STANDARD
95ST/95RT

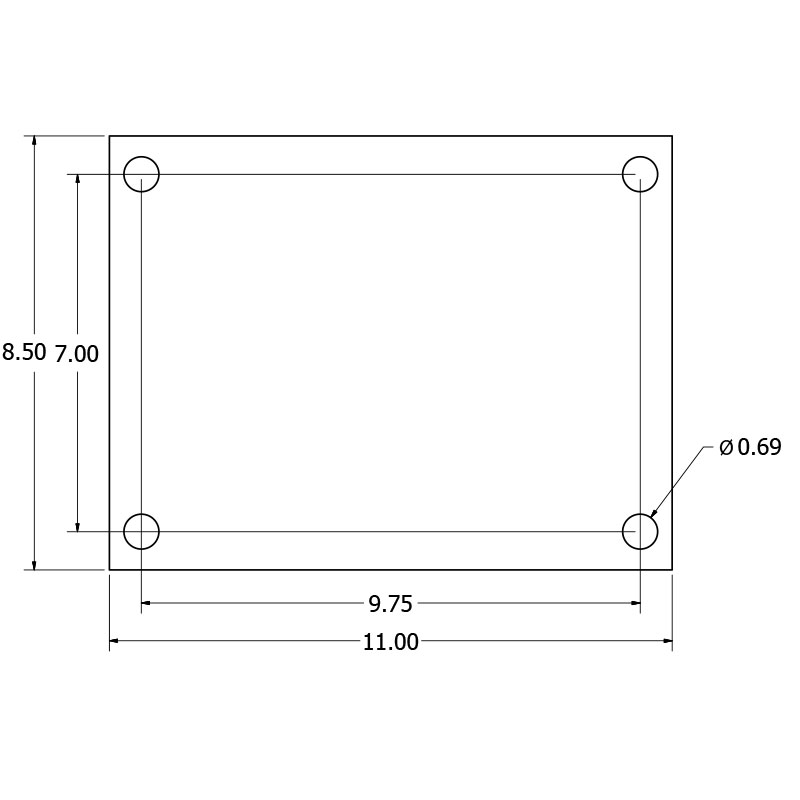

LLST/LLRT
LMST/LMRT

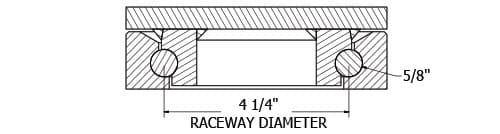

Kingpinless Raceway Diagram
BRAKES
| CWB | Cam Wheel Brake |
| PCWB | Poly Cam Wheel Brake |
SWIVEL LOCKS
| 8 SL | 8 Position Swivel Lock |
| DSL | Demountable Swivel Lock |
| FOSL | Foot Operated Swivel Lock |
| HDSL | Heavy-Duty Demountable Swivel Lock |
| LSL | L-Type Swivel Lock |
| SL | Swivel Lock |
| VSL | Vertical Swivel Lock |
LUBRICATIONS
| HT | High Temperature Lubrication |
| LT | Low Temperature Lubrication |
FINISHES
| HTP | High Temperature Paint |
| ZP | Zinc Plated |
GUARDS AND SWEEPERS
| FG | Foot Guard |
| NY | Notched Yoke |
| SR | Sealed Raceway |
| SWP | Sweeper Brush |
Specifications
85 Series Casters
| WHEEL DIAMETER | WHEEL WIDTH | CAPACITY | WHEEL TYPE | OVERALL HEIGHT | STRAIGHT ROLLER BEARING | BALL BEARING | TAPERED BEARING | SWIVEL LEAD | APPROX WEIGHT |
|---|---|---|---|---|---|---|---|---|---|
| 6" | 2-1/2″ | 2300 | GT | 8-1/2″ | 85-GTB-0625-S | 2″ | 17 | ||
| 6" | 2-1/2″ | 5000 | Forged Steel | 8-1/2″ | 85-FSR-0625-S | 85-FST-0625-S | 2″ | 23 | |
| 6" | 3″ | 680 | Rubber on Iron | 8-1/2″ | 85-RIR-0630-S | 2″ | 20 | ||
| 6" | 3″ | 1360 | Rubber on Iron-EHT | 8-1/2″ | 85-RIR-0630-S-EHT | 85-RIT-0630-S-EHT | 2″ | 20 | |
| 6" | 3″ | 2000 | Durastan | 8-1/2″ | 85-DUR-0630-S | 2″ | 17 | ||
| 6" | 3″ | 2000 | Urethane on Iron | 8-1/2″ | 85-UIR-0630-S | 85-UIT-0630-S | 2″ | 23 | |
| 6" | 3″ | 3000 | Cast Iron | 8-1/2″ | 85-CIR-0630-S | 85-CIT-0630-S | 2″ | 24 | |
| 6" | 3″ | 7000 | Forged Steel | 8-1/2″ | 85-FSR-0630-S | 85-FST-0630-S | 2″ | 28 | |
| 6" | 3″ | 7000 | V-Groove Forged | 8-1/2″ | 85-VFR-0630-S | 85-VFT-0630-S | 2″ | 32 | |
| 6" | 3″ | 10000 | Nylatron HD | 8-1/2″ | 85-NYB-0630-S | 2″ | 18 | ||
| 8" | 2-1/2″ | 670 | Rubber on Iron | 10-1/2'' | 85-RIR-0825-S | 2-1/2″ | 23 | ||
| 8" | 2-1/2″ | 1340 | Rubber on Iron-EHT | 10-1/2'' | 85-RIR-0825-S-EHT | 85-RIT-0825-S-EHT | 2-1/2″ | 23 | |
| 8" | 2-1/2″ | 2400 | GT | 10-1/2'' | 85-GTB-0825-S | 2-1/2″ | 21 | ||
| 8" | 2-1/2″ | 3000 | V-Groove Iron | 10-1/2'' | 85-VIR-0825-S | 85-VIT-0825-S | 2-1/2″ | 27 | |
| 8" | 2-1/2″ | 4500 | Forged Steel | 10-1/2'' | 85-FSR-0825-S | 85-FST-0825-S | 2-1/2″ | 30 | |
| 8" | 3″ | 840 | Rubber on Iron | 10-1/2'' | 85-RIR-0830-S | 2-1/2″ | 23 | ||
| 8" | 3″ | 1500 | Rubber on Aluminum-EHT | 10-1/2'' | 85-RAB-0830-S-EHT | 85-RAT-0830-S-EHT | 2-1/2″ | 21 | |
| 8" | 3″ | 1680 | Rubber on Iron-EHT | 10-1/2'' | 85-RIR-0830-S-EHT | 85-RIT-0830-S-EHT | 2-1/2″ | 23 | |
| 8" | 3″ | 1600 | Omega | 10-1/2'' | 85-UOR-0830-S | 85-UOB-0830-S | 85-UOT-0830-S | 2-1/2″ | 26 |
| 8" | 3″ | 2500 | Durastan | 10-1/2'' | 85-DUR-0830-S | 2-1/2″ | 21 | ||
| 8" | 3″ | 2500 | Urethane on Iron | 10-1/2'' | 85-UIR-0830-S | 85-UIT-0830-S | 2-1/2″ | 26 | |
| 8" | 3″ | 3000 | Cast Iron | 10-1/2'' | 85-CIR-0830-S | 85-CIT-0830-S | 2-1/2″ | 28 | |
| 8" | 3″ | 4000 | Infinity | 10-1/2'' | 85-UIB-0830-S-INF | 2-1/2″ | 26 | ||
| 8" | 3″ | 5000 | V-Groove Iron | 10-1/2'' | 85-VIR-0830-S | 85-VIT-0830-S | 2-1/2″ | 30 | |
| 8" | 3″ | 5500 | Forged Steel | 10-1/2'' | 85-FSR-0830-S | 85-FST-0830-S | 2-1/2″ | 32 | |
| 8" | 3″ | 6000 | V-Groove Forged Steel | 10-1/2'' | 85-VFR-0830-S | 85-VFT-0830-S | 2-1/2″ | 29 | |
| 8" | 3″ | 10000 | Nylatron HD | 10-1/2'' | 85-NYB-0830-S | 2-1/2″ | 22 | ||
| 8" | 4″ | 3500 | Urethane on Iron | 10-1/2'' | 85-UIR-0840-S | 85-UIT-0840-S | 2-1/8″ | 28 | |
| 8" | 4″ | 4000 | Cast Iron | 10-1/2'' | 85-CIR-0840-S | 85-CIT-0840-S | 2-1/8″ | 34 | |
| 8" | 4″ | 10000 | Forged Steel | 10-1/2'' | 85-FSR-0840-S | 85-FST-0840-S | 2-1/8″ | 36 | |
| 8" | 4″ | 10000 | V-Groove Forged Steel | 10-1/2'' | 85-VFR-0840-S | 85-VFT-0840-S | 2-1/8″ | 36 | |
| 8" | 4″ | 10000 | Nylatron HD | 10-1/2'' | 85-NYB-0840-S | 2-1/8″ | 24 | ||
| 10" | 3″ | 1000 | Rubber on Iron | 12-1/2'' | 85-RIR-1030-S | 2-9/16″ | 28 | ||
| 10" | 3″ | 2000 | Rubber on Iron-EHT | 12-1/2'' | 85-RIR-1030-S-EHT | 85-RIT-1030-S-EHT | 2-9/16″ | 28 | |
| 10" | 3″ | 2000 | Omega | 12-1/2'' | 85-UOR-1030-S | 85-UOB-1030-S | 85-UOT-1030-S | 2-9/16″ | 32 |
| 10" | 3″ | 2000 | Rubber on Aluminum-EHT | 12-1/2'' | 85-RAB-1030-S-EHT | 85 - RAB - 1030 - S - EHT | 2-9/16″ | 26 | |
| 10" | 3″ | 2900 | Durastan | 12-1/2'' | 85-DUR-1030-S | 2-9/16″ | 25 | ||
| 10" | 3″ | 3000 | Urethane on Iron | 12-1/2'' | 85-UIR-1030-S | 85-UIT-1030-S | 2-9/16″ | 32 | |
| 10" | 3″ | 3400 | GT | 12-1/2'' | 85-GTB-1030-S | 2-9/16″ | 25 | ||
| 10" | 3″ | 3400 | Ultra Thick Urethane | 12-1/2'' | 85-UTR-1030-S | 85-UTT-1030-S | 2-9/16″ | 28 | |
| 10" | 3″ | 4000 | Cast Iron | 12-1/2'' | 85-CIR-1030-S | 85-CIT-1030-S | 2-9/16″ | 38 | |
| 10" | 3″ | 5000 | Infinity | 12-1/2'' | 85-UIB-1030-S-INF | 2-9/16″ | 32 | ||
| 10" | 3″ | 5000 | V-Groove Iron | 12-1/2'' | 85-VIR-1030-S | 85-VIT-1030-S | 2-9/16″ | 44 | |
| 10" | 3″ | 6000 | Forged Steel | 12-1/2'' | 85-FSR-1030-S | 85-FST-1030-S | 2-9/16″ | 39 | |
| 10" | 3″ | 6000 | V-Groove Forged Steel | 12-1/2'' | 85-VFR-1030-S | 85-VFT-1030-S | 2-9/16″ | 39 | |
| 10" | 3″ | 10000 | Nylatron HD | 12-1/2'' | 85-NYB-1030-S | 2-9/16″ | 26 | ||
| 10" | 4″ | 1400 | Rubber on Iron | 12-1/2'' | 85-RIR-1040-S | 85-RIT-1040-S | 2-9/16″ | 32 | |
| 10" | 4″ | 4200 | Urethane on Iron | 12-1/2'' | 85-UIR-1040-S | 85-UIT-1040-S | 2-9/16″ | 27 | |
| 10" | 4″ | 4500 | Ultra Thick Urethane | 12-1/2'' | 85-UTR-1040-S | 85-UTT-1040-S | 2-9/16″ | 32 | |
| 10" | 4″ | 10000 | Forged Steel | 12-1/2'' | 85-FSR-1040-S | 85-FST-1040-S | 2-9/16″ | 44 | |
| 10" | 4″ | 10000 | Nylatron HD | 12-1/2'' | 85-NYB-1040-S | 2-9/16″ | 30 | ||
| 12" | 3″ | 1140 | Rubber on Iron | 15-1/2'' | 85-RIR-1230-S | 85-RIT-1230-S | 3-7/8″ | 38 | |
| 12" | 3″ | 2280 | Rubber on Iron-EHT | 15-1/2'' | 85-RIR-1230-S-EHT | 85-RIT-1230-S-EHT | 3-7/8″ | 38 | |
| 12" | 3″ | 2280 | Rubber on Aluminum-EHT | 15-1/2'' | 85-RAB-1230-S-EHT | 85-RAT-1230-S-EHT | 3-7/8″ | 35 | |
| 12" | 3″ | 3400 | Urethane on Iron | 15-1/2'' | 85-UIR-1230-S | 85-UIT-1230-S | 3-7/8″ | 42 | |
| 12" | 3″ | 3500 | Durastan | 15-1/2'' | 85-DUR-1230-S | 3-7/8″ | 29 | ||
| 12" | 3″ | 4100 | Ultra Thick Urethane | 15-1/2'' | 85-UTR-1230-S | 85-UTT-1230-S | 3-7/8″ | 31 | |
| 12" | 3″ | 5000 | Cast Iron | 15-1/2'' | 85-CIR-1230-S | 85-CIT-1230-S | 3-7/8″ | 41 | |
| 12" | 3″ | 6000 | V-Groove Iron | 15-1/2'' | 85-VIR-1230-S | 85-VIT-1230-S | 3-7/8″ | 43 | |
| 12" | 3″ | 10000 | Nylatron HD | 15-1/2'' | 85-NYB-1230-S | 3-7/8″ | 38 | ||
| 12" | 4″ | 1600 | Rubber on Iron | 15-1/2'' | 85-RIR-1240-S | 85-RIT-1240-S | 3-5/8″ | 29 | |
| 12" | 4″ | 4000 | Durastan | 15-1/2'' | 85-DUR-1240-S | 3-5/8″ | 28 | ||
| 12" | 4″ | 4800 | Urethane on Iron | 15-1/2'' | 85-UIR-1240-S | 85-UIT-1240-S | 3-5/8″ | 29 | |
| 12" | 4″ | 5300 | Ultra Thick Urethane | 15-1/2'' | 85-UTR-1240-S | 85-UTT-1240-S | 3-5/8″ | 36 | |
| 12" | 5″ | 2050 | Rubber on Iron | 15-1/2'' | 85-RIR-1250-S | 85-RIT-1250-S | 3-5/8″ | 44 | |
| 12" | 5″ | 6000 | Urethane on Iron | 15-1/2'' | 85-UIR-1250-S | 85-UIT-1250-S | 3-5/8″ | 48 | |
| 12" | 5″ | 6500 | Ultra Thick Urethane | 15-1/2'' | 85-UTR-1250-S | 85-UTT-1250-S | 3-5/8″ | 45 |
